Horizontal Impregnation lines
For coating melamine on the decorative paper
For short cycle lamination of MDF / Particleboards

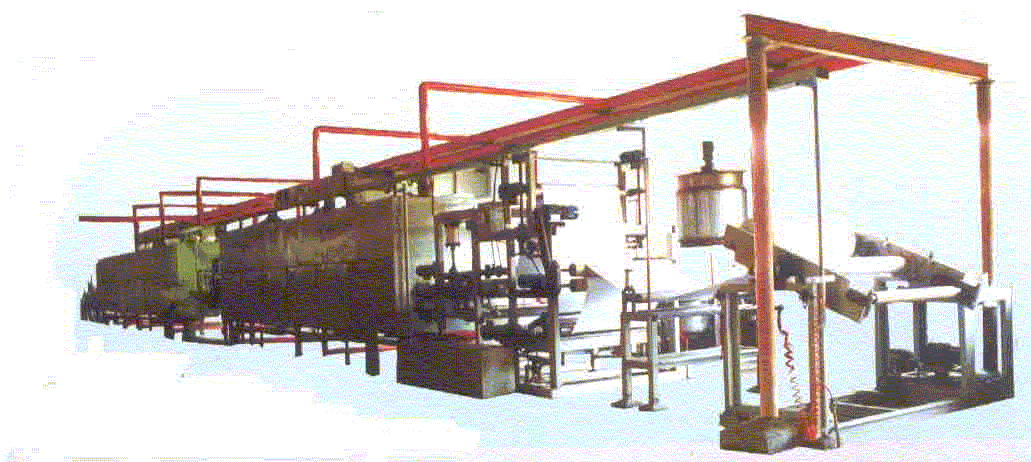

A view of Double horizontal Impregnating Line

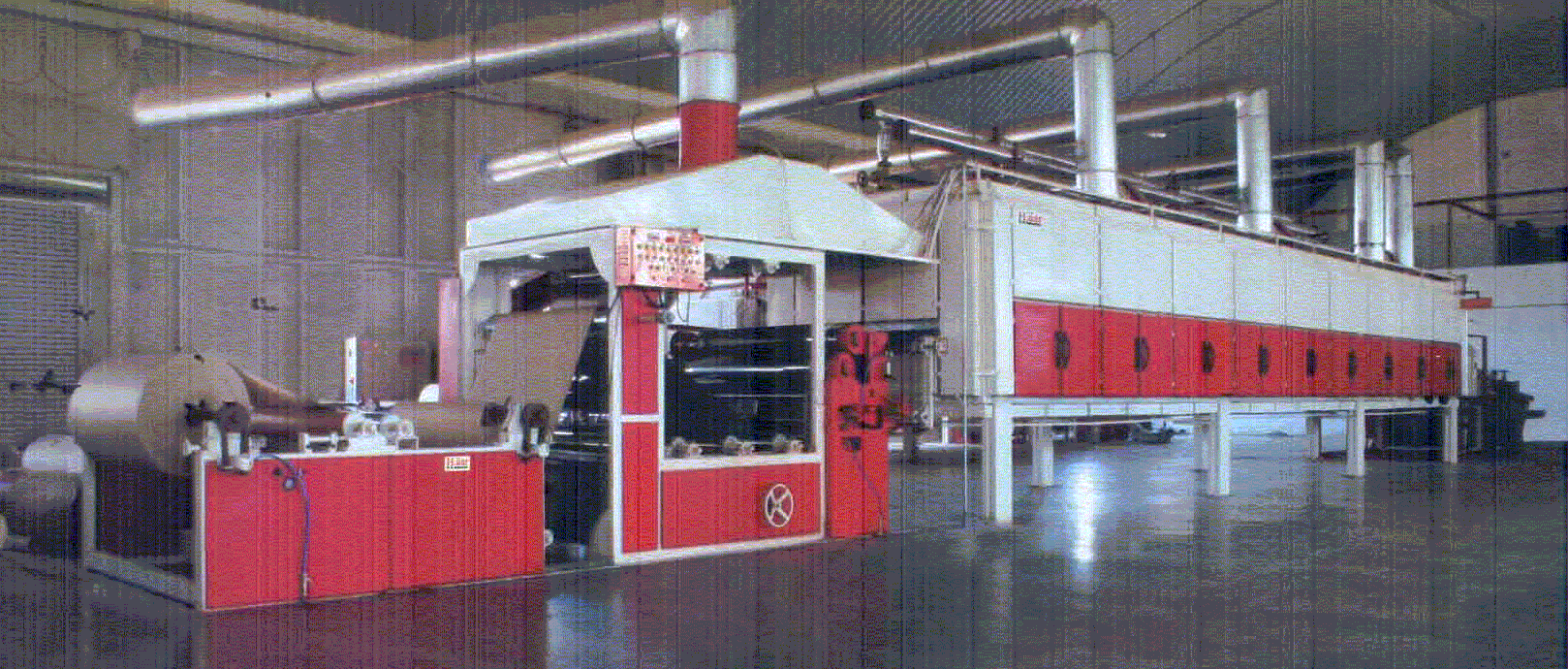

Another view of Double horizontal Impregnating Line

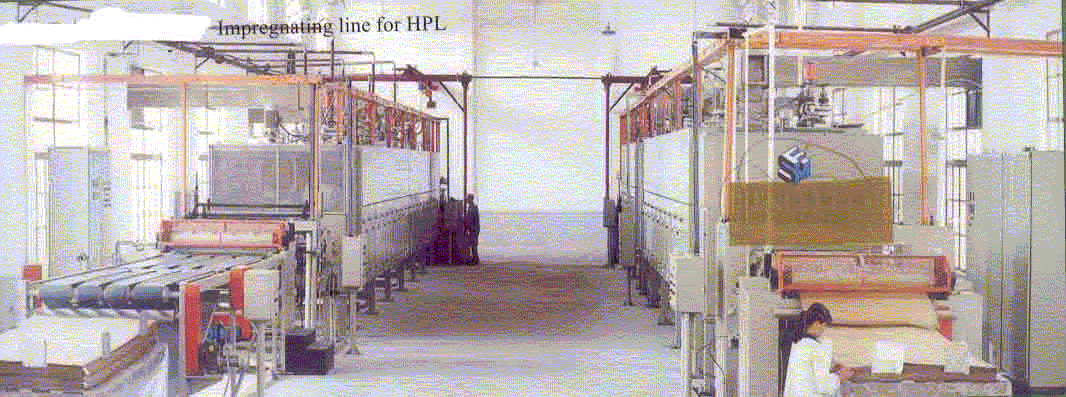

Front view of Impregnation Lines

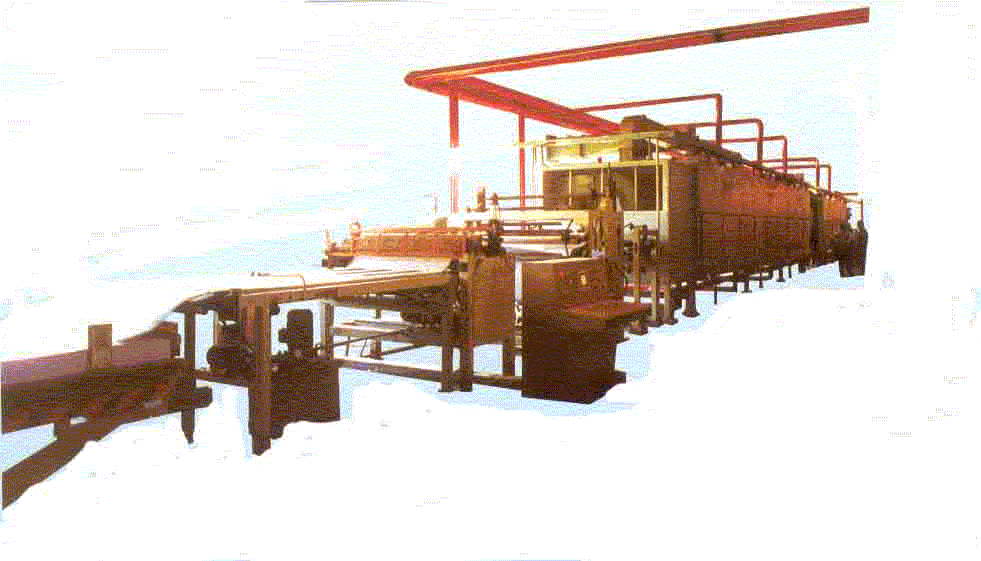

A Complete view of single horizontal impregnating line

For Laminating the melamine coated paper on MDF/ Particleboard, there are two options

  1. Importing melamine coated papers in refrigerated containers; or
  2. In-house melamine coating of Indian /Imported plain decorative papers.

In the second option, there is no need for importing in refrigerated containers. On the other hand, decorative papers can be imported in bigger rolls, to save on the cost.

Horizontal impregnation lines are designed to coat melamine in a single stage machine or UF / phenol + melamine in the double stage machine, depending on the market demand. These lines are used extensively in High pressure laminates (HPL) also.

Goodrich offers horizontal impregnation lines, which have two options-

  1. Two stage horizontal Impregnation line;

               or
  2. Single stage horizontal Impregnation line.

Following are the list of equipments-

Technical Data of two-stage Impregnating Line -

1

Available width

960~1400mm

2

Working level

1200mm (from ground to the working place)

3

Raw paper

Wearable paper, decorative paper and backing paper for impregnation

4

Specific weight

38~140g/m2

5

Impregnating medium

Melamine resin, modified resin etc.

6

Resin pick-up

80~260% (according to various raw papers)

7

Volatile

6~8%

8

Mechanical speed

0~40 m/min

9

Running speed

6~20 m/min (according to different raw paper and resin pick-up)

10

Drying temperature

70~160 0C

11

Total power

~66kW

12

Heating medium

Steam or thermal oil

13

Heat consumption

0.46MW(46104kcal/h)

14

Compressed air consumption

0.6MPa 6m3/h

15

Total net weight

~ 42000kg

Note: If specific weight of raw paper is 80~90g/m2 and its resin pick-up is 130 140 %,then the daily output can be over 10,000 sheets.

List of equipments for two-stage Horizontal Impregnation Line

Unwinder -

1 unit

Splicer -

1 unit

Impregnating machine -

1 unit

Air flotation dryer -

5 units

Cooling device -

2 units

Coating machine -

1 unit

Web aligner -

1 unit

Pulling machine -

1 unit

Slitter -

1 unit

Belt conveyor -

1 unit

Blower -

1 unit

Lifting plate -

1 unit

Electric system -

1 set



Production process for two-stage Horizontal Impregnating Line

  1. The raw papers pass through the unwinder, the S conveyor rollers, and breathing rollers into coating rollers.
  2. After first impregnation, the paper will be pulled out from the first air flotation dryer,then pass through the second coating machine and second drying section for drying again.
  3. Then the paper will pass through the web aligner and pull rollers, and will be conveyed onto the stacking, after cut by paper cutter.

Special Characteristics of two-stage Horizontal Impregnating line-

  1. The first and second impregnating machine both apply single-sided coating & the resin pick-up can be precisely controlled.Even the oiled paper and the uneven weight paper can be coated evenly.
  2. Variety: decorative paper, overlaying paper,wear-resistant paper.
  3. Technology: the impregnated paper has four resin films. Can use , , urea resin coating technologies, according to actual demands.
  4. Frequency converter, non-stop speed-regulating.
  5. Working speed: 6-20 m/min.
  6. The two air flotation dryers-both use the same heat source (steam or thermal oil).
  7. The electric control system is operated by PLC.The operation is direct and reliable.
  8. The paper tension can be automatically adjusted; the paper length can be set according to actual demands. The number of paper is automatically counted.
  9. The electric control parts are imported,which are accurate, reliable and durable.

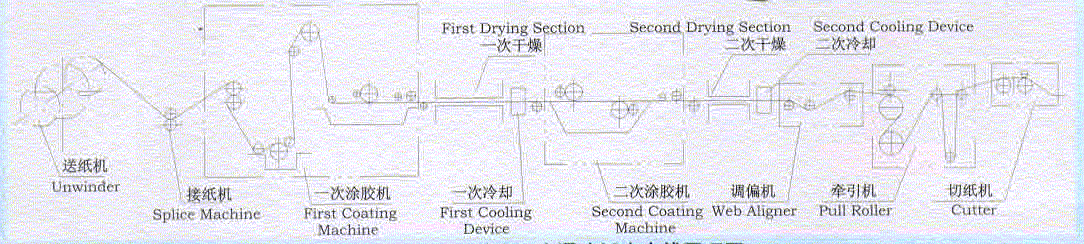

A Schematic diagram of the two-stage horizontal Impregnation line-

Technical Data of the single stage horizontal impregnating line -

1

Available width

960~1400mm

2

Working level

1200mm (from ground to the working place)

3

Raw paper

Wearable paper, decorative paper and backing paper for impregnation

4

Specific weight

38~140g/m2

5

Impregnating medium

Melamine resin, modified resin etc.

7

Volatile

6~8%

8

Mechanical speed

5~40 m/min

9

Running speed

5~20 m/min (according to different raw paper and resin pick-up)

10

Drying temperature

70~160 0C

11

Total power

~60kW

12

Heating medium

Steam or thermal oil

13

Heat consumption

0.50MW(50104kcal/h)

14

Compressed air consumption

0.6MPa 6m3/h

15

Total net weight

~ 42000kg

Note: If specific weight of raw paper is 80~90g/m2 and its resin pick-up is 130 140 %, then the daily output can be over 10,000 sheets.



List of Equipments for single stage horizontal impregnation line-

Unwinder -

1 unit

Splicer -

1 unit

Impregnating machine -

1 unit

Air flotation dryer -

4 units

Cooling device -

1 units

Web aligner -

1 unit

Pulling machine -

1 unit

Slitter -

1 unit

Belt conveyor -

1 unit

Blower -

1 unit

Lifting plate -

1 unit

Electric system -

1 set
